Industrial Cellular Gateway

  • EU01-300
  • EU01-300
  • EU01-300
  • EU01-300
  • EU01-300
EU01-300EU01-300EU01-300EU01-300EU01-300

EU01-300

  • Annntenna: SMA
  • Chipset Solution:QCA9531
  • Voltage:12V±5%
  • Size: 123mm*104.4mm*28.3mm
  • Product description: EU01-300 is an industrial cellular gateway designed to operate under high temperatures and scenarios with potential physical hazards.
  • INQUIRY

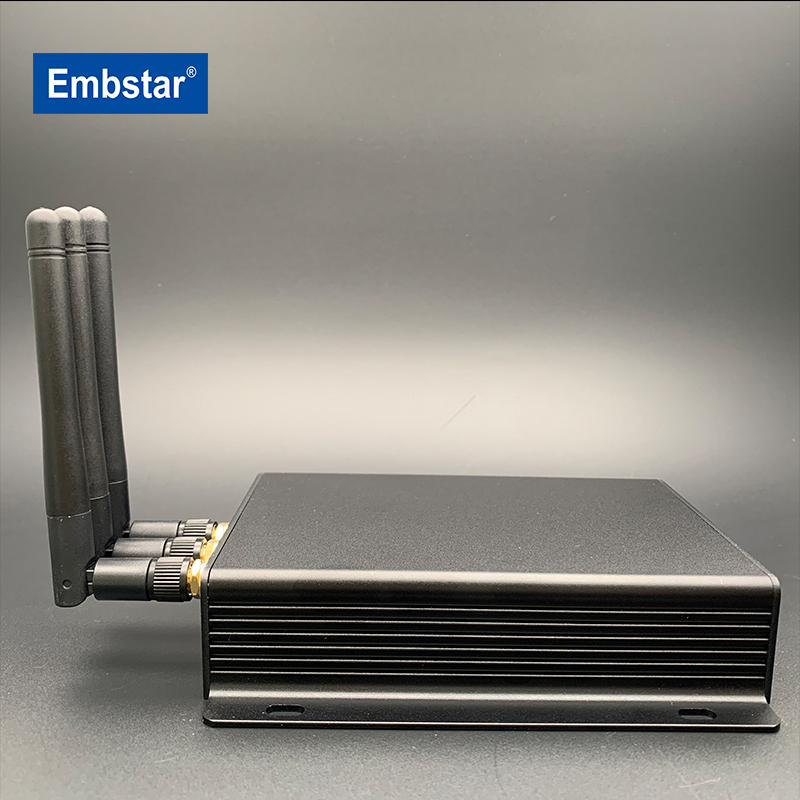

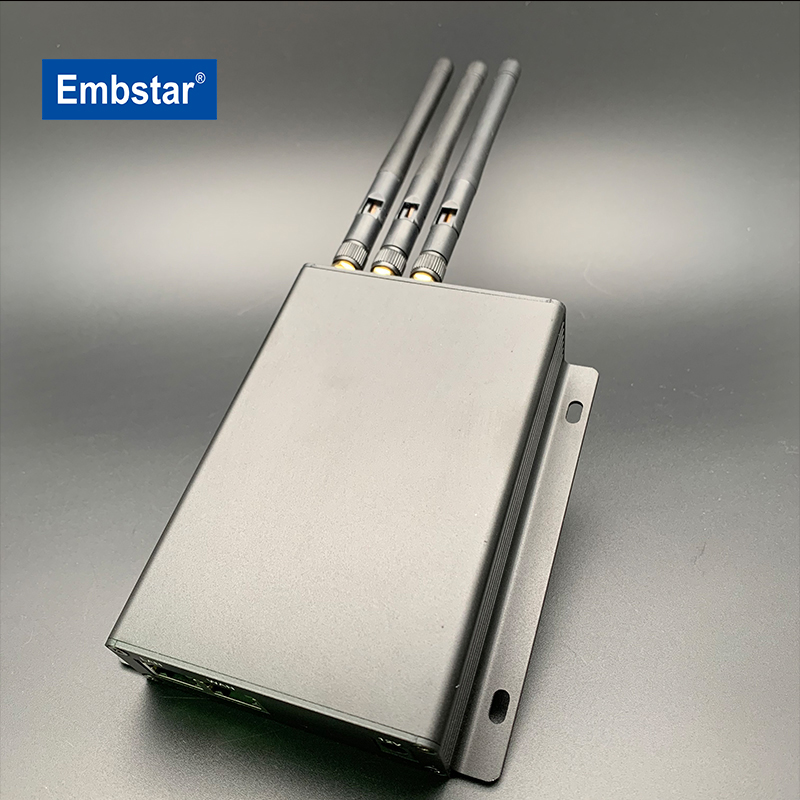

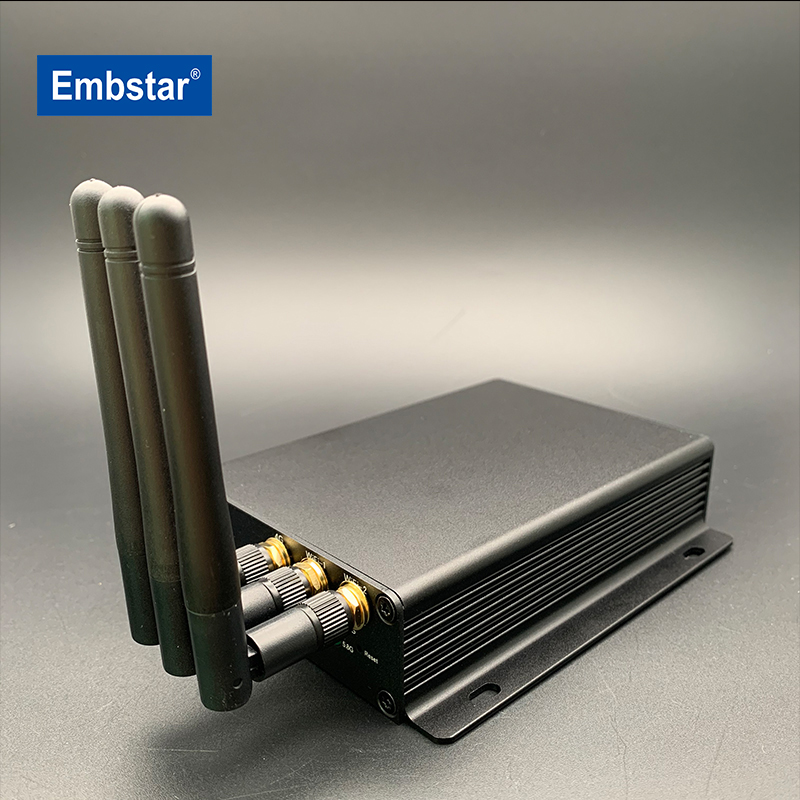

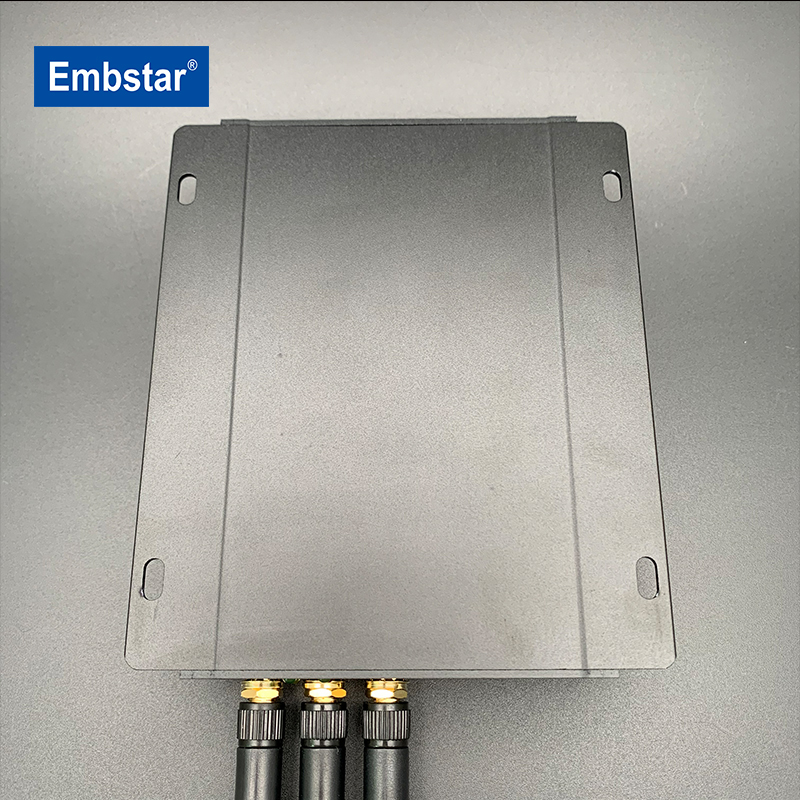

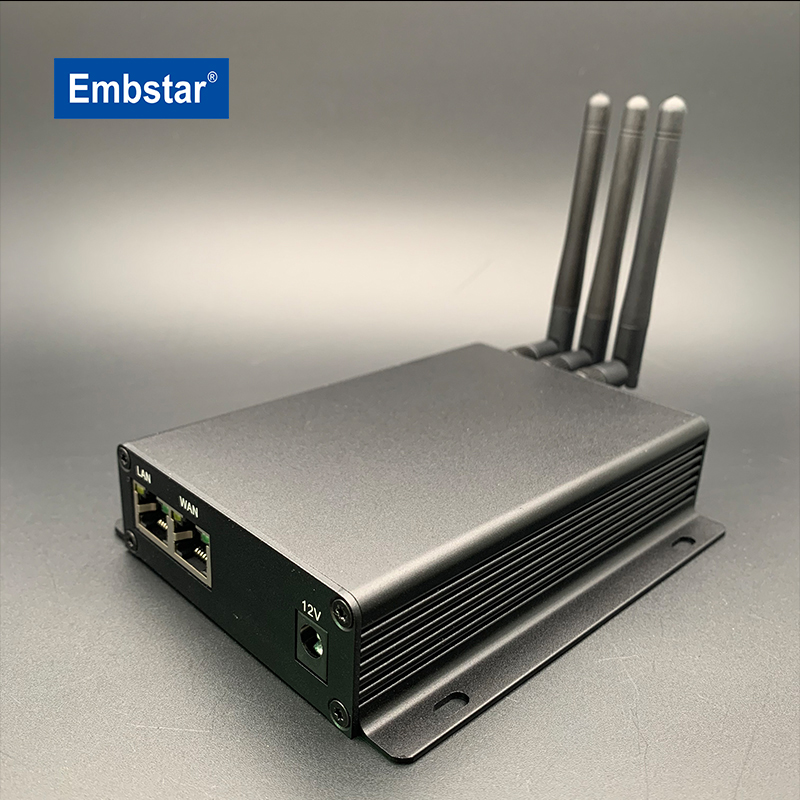

EU01-300 Overview

EU01-300 is an industrial cellular gateway designed to operate under high temperatures and scenarios with potential physical hazards, It can work stably in the temperature environment of -40~+80°C. By replacing the cellular module, EU01-300 can support cellular networks in various regions of the world.


EU01-300 Specifications

Interface 1 x WAN Ethernet Port
1 x LAN Ethernet Port
1 X Standard SIM Card Slot
1 x Power Port

1 x Reset Button

6 x LED

CPU QCA9531, @650MHz SoC
Memory / Storage DDR2 128MB + NOR Flash 16MB
External Antennas 2 x 2.4G Antenna, 1 x 4G LTE Antenna
Wi-Fi Protocol IEEE 802.11b/g/n
Wi-Fi Speed 300Mbps (2.4GHz)
Ethernet Speed 10/100Mbps
LEDs Power, Wi-Fi, 4G and WAN/LAN
Power Supply Supports 12V voltage input 5.5 mm DC power connector
Power Consumption <5W
Operating Temperature -40 ~ 85°C (-40 ~ 185°F)
Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Dimension / Weight 123 x 104.4 x 28.3mm / 240g

EU01-300 4G LTE Industrial WiFi Router Applicitions

---WiFi AP

---OpenWrt Router

---3G/4G WiFi Router

---WiFi Repeater

---WiFi Enabled Security Cameras

---Smart Door Locks

---Building Automation

---Smart Home & Building

---Smart Healthcare

---Industrial Sensor Controller
