Single-band 802.11N Module

  • QCA9531WiFi AP Module MP05
  • QCA9531WiFi AP Module MP05
  • QCA9531WiFi AP Module MP05
  • QCA9531WiFi AP Module MP05
  • QCA9531WiFi AP Module MP05
QCA9531WiFi AP Module MP05QCA9531WiFi AP Module MP05QCA9531WiFi AP Module MP05QCA9531WiFi AP Module MP05QCA9531WiFi AP Module MP05

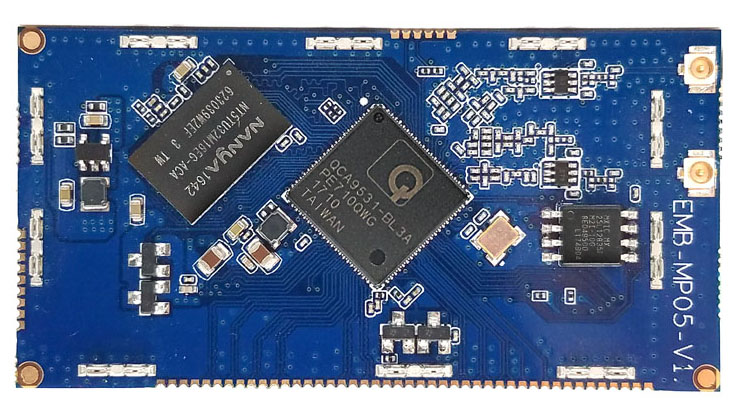

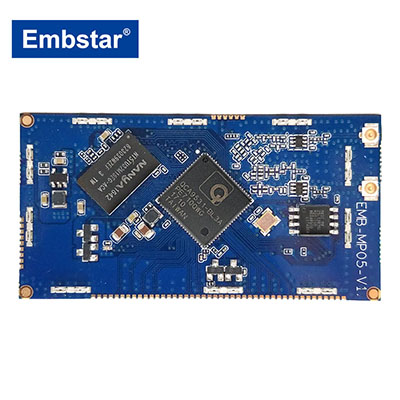

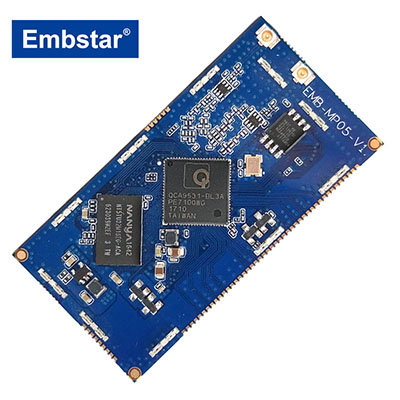

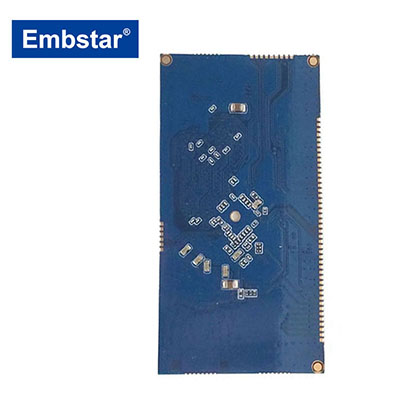

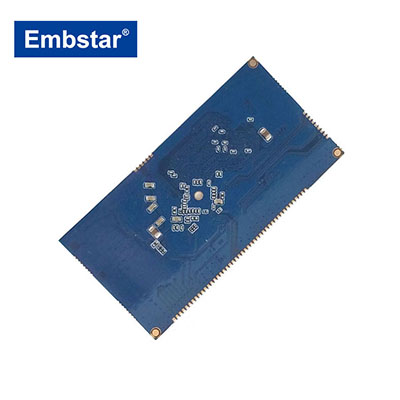

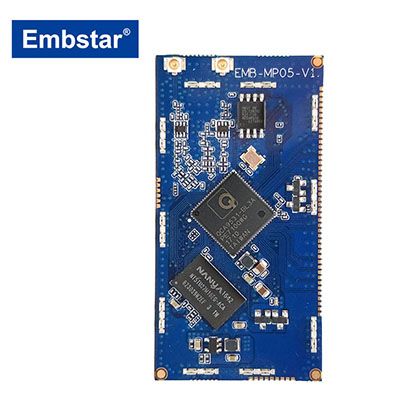

QCA9531WiFi AP Module MP05

  • Annntenna:IPEX
  • Chipset Solution:QCA9531
  • Voltage:3.3V±5%
  • Size:62.04mm x 31.99mm
  • Product description: MP05 is a complete, small form factor 802.11b/g/n Wi-Fi Solution optimized for low power, low-cost, and highly integrated AP and consumer electronic devices, the module integrates all Wi-Fi functional
  • INQUIRY


MP05 WiFi  AP Module Overview
MP05 is a complete, small form factor 802.11b/g/n Wi-Fi Solution optimized for low power, low-cost, and highly integrated AP and consumer electronic devices, the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a few external 3.3V and connection to antenna.

The module based on the single chip QCA9531 which integrates an 802.11n 2x2 MIMO MAC/BB/ radio with internal PA and LNA. It supports 802.11n operations up to 150 Mbps for 20MHZ and 300 Mbps for 40MHZ,and 802.11b/g data rates.

The module supports AP mode and client mode at the same time and include mass service application software to reduce the research and design work of customer.

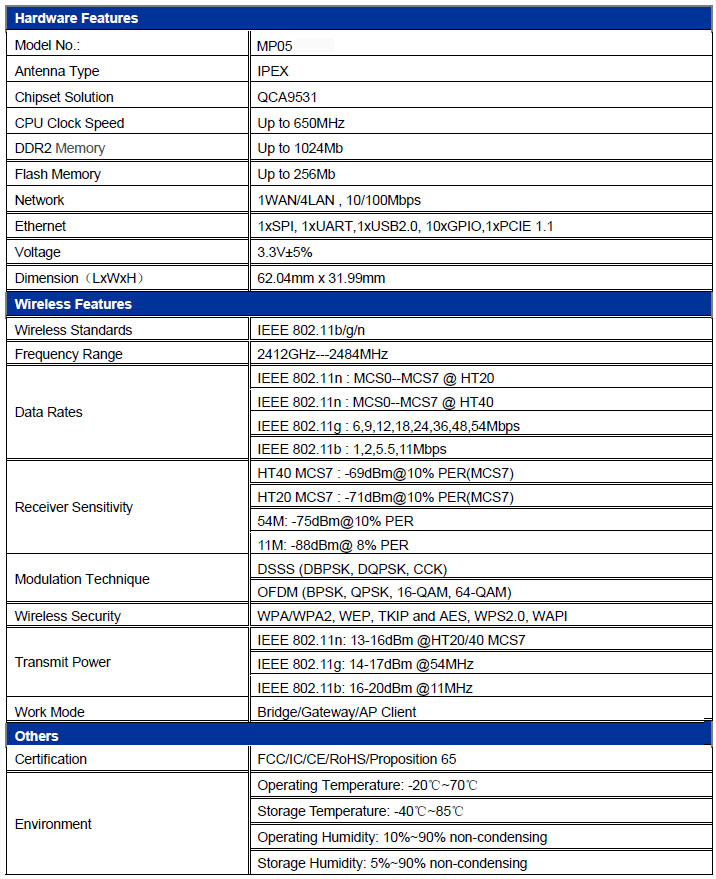

MP05 WiFi  AP Module Features

MP05 WiFi  AP Module Applicitions

---WiFi AP

---3G/4G WiFi Router

---WiFi Repeater

---WiFi Enabled Security Cameras

---Smart Door Locks

---Building Automation

---Smart Home & Building

---Smart Healthcare

---Industrial Sensor Controller
